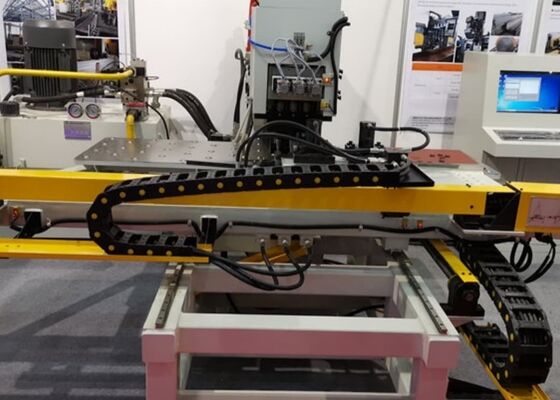

1. The machine frame is fabricated using C-type plate welding, ensuring superior rigidity while providing a spacious work area. It features three die stations—two for punching and one for marking—equipped with automatic die station switching. The clamping system is versatile, capable of securing a wide range of workpieces, and incorporates a reference block for precise alignment. The workpiece is supported by a roller-ball worktable. The X and Y axes are driven by servo motors and ball-screw systems, with position feedback monitored by a PLC, enabling automated control of the punching operations. Operators can input the workpiece program, which can be saved and reused for future processing tasks.
2. The machine integrates CNC technology and servo motor-driven feeding, enhancing efficiency while ensuring consistent precision for the workpieces.
3. Essential functional components are designed with a modular construction, simplifying maintenance and repair procedures.
4. It is capable of executing both punching and marking operations on a single steel plate.
5. The system offers intuitive programming, supporting CAD files and enabling seamless integration with programs generated by lofting software. It is fully compatible with TEKLA lofting software files, including the NC1 format.
6. The machine is equipped with a built-in self-diagnostic fault detection system.
7. The X and Y axes are powered by servo motors, ball screws, and linear guides, ensuring exceptional accuracy.
8. The main structure is built from a C-shaped welded steel plate framework, providing superior rigidity and an expansive operational area.
9. The machine is equipped with three workstations, including one specifically for marking, with automatic station switching capability.
10. The clamping system is designed to accommodate workpieces with varying thicknesses. A reference zero block is used to stabilize the workpiece on a ball-bearing worktable.
11. The X and Y axes are powered by servo motors, ball screws, and high-precision linear guides, controlled by a dual-axis CNC system to ensure accurate positioning during punching operations.
12. The entire machining process is fully automated, requiring the operator to simply enter the workpiece drawing into the computer.
