1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size

Сертификация
КИТАЙ Jinan Auten Machinery Co., Ltd. Сертификаты
КИТАЙ Jinan Auten Machinery Co., Ltd. Сертификаты
Сотрудничество очень приятно. Джинан Аутен имеет превосходную профессиональную команду, оборудование работает хорошо и стабилизированный, своевременный и восторженный послепродажное обслуживание впечатляет нас. Мы надеемся что мы можем иметь более глубокое сотрудничество в будущем!

—— ПТ. Букака

Машина обработки КНК легка для обслуживания, высокой эффективности, кроме того, цена доступна.

—— Боб

Славное сотрудничество, мы оцениваем их терпение, и трудную работу.

—— Mary

Оставьте нам сообщение

1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size

1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size

Большие изображения :  1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size

Подробная информация о продукте:
Место происхождения: КИТАЙ
Фирменное наименование: Auten
Сертификация: ISO9001
Номер модели: JNC1010
Оплата и доставка Условия:
Количество мин заказа: 1 набор
Цена: negotiable
Упаковывая детали: Деревянный корпус
Время доставки: 60 дней
Условия оплаты: L/C, T/T.
Поставка способности: 200 комплектов/год
Подробное описание продукта
Функция: Панки, маркировка, резка Размер углов (мм): ∟40 × 40 × 3 ~∟100 × 100 × 10
Максимум длина бланка (м): 12 Максимум Длина готовой (м): 10
Максимум Punching (Dia. Х thi.) (Мм): Φ26 × 10 (материал: Q345 510N/MM2) Удары на сторону: 2
Plunging Force (KN): 630 Маркировка сила (кН): 630
Сила резки (кН): 1000

1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size


Applicable Industry:


This CNC angle punching cutting and marking machine line is a custom-developed, industry-specific device exclusively engineered to carry out high-precision angle steel punching, marking, and shearing operations. The CNC angle metal punch machine is specifically tailored to meet the core processing demands of the angle steel tower industry—a sector where component accuracy directly impacts structural stability.

Specifications:



Model JNC1010
Functions Punching, marking, cutting
Angle size(mm) ∟40×40×3~∟100×100×10
Max. length of blank (m) 12
Max. length of finished (m) 10
Max. Punching (dia. х thi.) (mm) Φ26×10(Material:Q345 510N/mm2)
Punches per side 2
Punching force (kN) 630
Marking force (kN) 630
Cutting force (kN) 1000
Group of Marking letters 4
Number of letters per group 12
Dimension of letter (mm) 14×10×19
Cutting mode Single blade cutting
CNC axes 3
Feeding speed of angle (m/min) 80
Cooling method of hydraulic system Water cooling
Processing precision Accordance with GB2694
Program function Input by keyboard and USB interface
Dimension(mm) 28000×6500×2200



1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size 0


Product Composition:


This CNC punching shearing and marking equipment is primarily made up of core functional modules, which include a transverse conveyor, a rotating loading system, a feed-in conveyor, a CNC feed-in carriage, a punching module, a marking module, a cutting module, and an unloading conveyor. Angles punching machine line also incorporates essential supporting systems—such as hydraulic, electrical, and pneumatic systems—along with other auxiliary components.

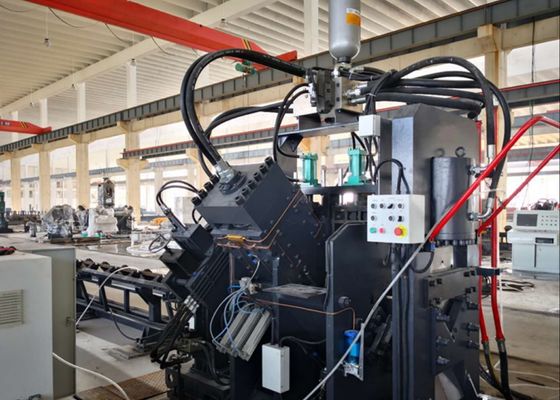

1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size 1



Product Features:



1. Marking Unit Design
The marking unit adopts a closed-frame structure with excellent rigidity. Four groups of character boxes are fixed on the unit and can be selected via program; the marking reference mark can be set arbitrarily.

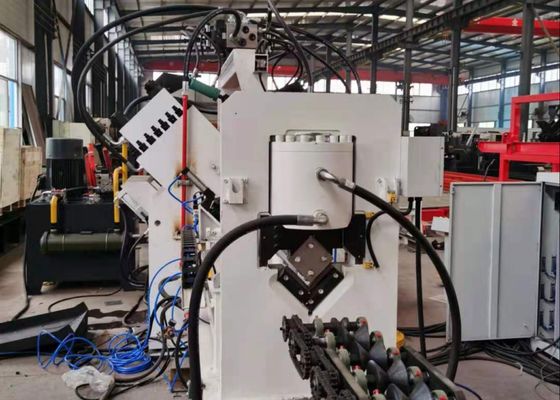

1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size 2



2. Punch & Die Setup


The CNC punch mark and chu machine line each side is equipped with three sets of punches and dies, which can accommodate three types of punches with different diameters. Under PLC control, the three sets of dies can achieve synchronous movement to adjust the punching reference mark.


1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size 3



3. Human-Machine Interface & Programming


The computer is configured with a Chinese/English interface, featuring user-friendly operation and the ability to display workpiece drawings. Programming is simplified, and the equipment can directly utilize program data generated by lofting software. When editing a program, users only need to input workpiece dimensions, hole diameters, reference marks, and workpiece quantities.



1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size 4



4. Control & Feeding System


The cnc punching equipment for tower adopts CNC technology and servo motor-driven feeding, delivering high operational efficiency and stable workpiece precision. All key hydraulic, pneumatic, and electrical components are of imported origin, ensuring reliable system performance.

1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size 5

These specimens, which cover common specifications and processing scenarios in the angle steel tower industry, enable users to directly inspect the equipment’s processing quality, precision, and craftsmanship standards.



1000KN Cutting Force CNC Punching And Shearing Equipment Line ∟40×40×3~∟100×100×10mm Angle Size 6



In the construction of ultra-high voltage (UHV) transmission lines—where towers are required to resist extreme meteorological conditions and heavy loads—this equipment fulfills a critical function in processing the angle steel components that constitute the towers’ main framework. It reliably executes drilling and stamping operations on the angle steel applied to tower bodies, cross-arms, and other key structural components. This guarantees precise dimensional accuracy and robust connections, thereby ensuring the overall stability of the towers.
