40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit

Сертификация
КИТАЙ Jinan Auten Machinery Co., Ltd. Сертификаты
КИТАЙ Jinan Auten Machinery Co., Ltd. Сертификаты
Сотрудничество очень приятно. Джинан Аутен имеет превосходную профессиональную команду, оборудование работает хорошо и стабилизированный, своевременный и восторженный послепродажное обслуживание впечатляет нас. Мы надеемся что мы можем иметь более глубокое сотрудничество в будущем!

—— ПТ. Букака

Машина обработки КНК легка для обслуживания, высокой эффективности, кроме того, цена доступна.

—— Боб

Славное сотрудничество, мы оцениваем их терпение, и трудную работу.

—— Mary

Оставьте нам сообщение

40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit

40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit
40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit 40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit

Большие изображения :  40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit

Подробная информация о продукте:
Место происхождения: КИТАЙ
Фирменное наименование: Auten
Сертификация: ISO9001
Номер модели: ADM2532
Оплата и доставка Условия:
Количество мин заказа: 1 набор
Цена: negotiable
Упаковывая детали: Контейнером
Время доставки: 60 дней
Условия оплаты: L/C, T/T.
Поставка способности: 200 комплектов/год
Подробное описание продукта
Функция: Бурение и маркировка Размер углов (мм): 140*140*10 ~ 250*250*32
Максимум Длина сырья (м): 14 Маркировка сила (кН): 1000
Количество персонажей группы: 1 Количество характера: 18
Размер символа (мм): 14*10*19 Диапазон точного расстояния (мм): 50 ~ 220 (беспроблемное)

40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit



Product Usage:

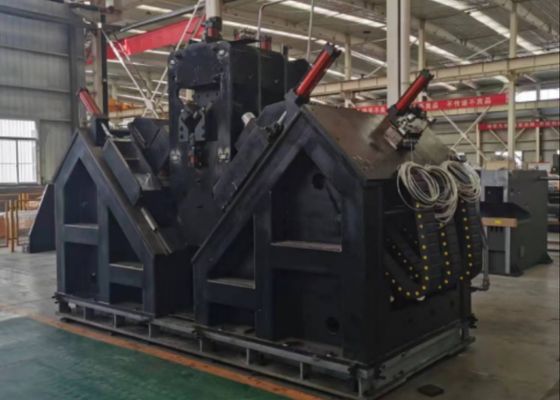

This CNC angle steel punching production line is custom-developed for the drilling and stamping processes of large-size, high-strength angle steel specifically used in transmission line towers. All necessary holes on the angle steel can be precision-machined on this production line, which offers excellent hole quality, high positional accuracy, as well as outstanding production efficiency and advanced automation capabilities.



Main parameters:



Model ADM2532
Angle size(mm) 140*140*10~250*250*32
Max. length of raw material (m) 14
Marking force(kN) 1000
No. of character group 1
No. of character 18
Character size (mm) 14*10*19
Range of accurate distance(mm) 50~220(Stepless)
No. of drill on each side 3(2 groups, 6 in total)
No. of blade on each side 3

Taper of drilling spindle

BT40
Max. drilling diameter (mm) Φ40
Max. Spindle rotation speed(r/min) 6000
Drill cooling unit MQL 360-2(Dry cooling)
Cooling unit oil storage capacity 2L
Cutting oil Vegetable oil-based micro cutting oils(2000-25)
fuel consumption 5~50ml/h
CNC trolley drive type AC servo motor,rack and pinion driving
Max. feeding speed of angle(m/min) 40
AB-axis alignment movement drive method Linear Motion Guide;AC servo motor;Ball screw Secondary driving
Max. skateboard travel speed of drilling head(m/min) 10
Drilling head drive type Linear Motion Guide;AC servo motor;Ball screw Secondary driving
Max. feeding speed of drilling head(m/min) 14
Feeder trolley arm working method Vertical lifting type
Number of tipping cylinders on discharge side 4
Hydraulic station cooling method Air cooling
No. of CNC axes 9
Air pressure(MPa) 1
Total power About 150KW



40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit 0



Product Features:

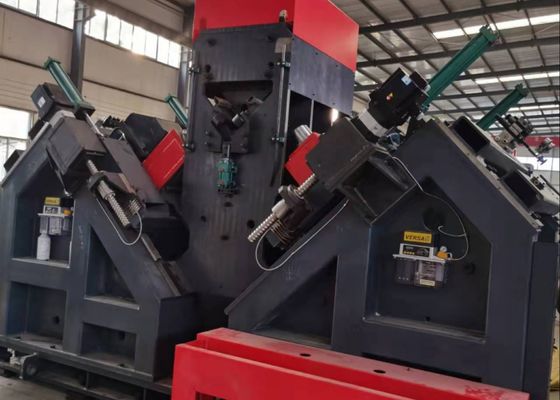

The cnc angle metal drilling unit is equipped with six sets of CNC drilling heads, with three sets arranged on each of the two flanges of the angle steel. For holes of the same diameter and identical end distance on both flanges of the angle steel, the corresponding drilling heads on both sides can perform simultaneous drilling operations. The drilling spindle adopts a Taiwan-sourced BT40 precision spindle (with internal cooling), and the drilling heads utilize cemented carbide drills. The cutting speed of the drilling heads reaches up to 200 m/min (in contrast to 25–35 m/min for conventional high-speed steel twist drills), enabling exceptionally fast processing.



40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit 1



A servo motor drives the CNC drilling power head for feeding movements; the rapid feed, working feed, and rapid retraction of the drill bit are controlled by the CNC system and executed automatically. The retraction position of the drill bit can be set via the host computer, which reduces idle strokes and further enhances production efficiency. The manufactured holes feature a diameter tolerance of less than 0.1 mm and a surface finish (Ra) of less than 6.3 μm, ensuring high hole processing quality.



40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit 2



(1)The spindle motor of the drilling unit adopts a high-quality inverter motor, with a maximum spindle speed of up to 6000 r/min.
(2)The drill pipe feeding speed is approximately 40 m/min (adjustable).
(3)The spindle and other force-bearing components are manufactured in compliance with standards, undergoing forging, heat treatment, and non-destructive testing. This ensures sufficient strength, hardness, and wear resistance, as well as high fatigue strength, to meet the requirements of long-term feeding and rotational operations. The spindle is sourced from Taiwan-based brands such as Jianchun or Danquan.



40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit 3

(4)To guarantee the operational accuracy of the equipment, the spindle deflection must be less than 1/1000 of the span under all maximum load conditions.
(5)The spindle feeding distance is equipped with an adjustable compensation function.
(6)Travel switches are installed at the upper and lower limit positions of the collinear movement of the drilling unit’s power head, serving as limit protection devices.
(7)In addition to the limit switch protection installed on the unit power head, the control system shall also provide soft limit protection for its limit positions.

40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit 4

These specimens cover a range of common specifications and hole patterns of angle steel employed in transmission line tower construction. They allow potential users or inspectors to visually confirm the equipment’s operational performance, thereby providing concrete and intuitive references for evaluating whether the equipment meets the practical production demands of transmission line tower manufacturing.



40mm Max. Drilling Diameter CNC Metal Punching Machine MQL 360-2 (Dry Cooling) Drill Cooling Unit 5



In ultra-high voltage (UHV) transmission line construction—where transmission towers are required to resist extreme weather conditions and heavy loads—this equipment plays a critical role in processing angle steel components for the towers’ main load-bearing frameworks. It efficiently accomplishes drilling and stamping operations for angle steel used in tower bodies, cross-arms, and other key structural components, ensuring high dimensional precision and reliable connection performance. This, in turn, protects the overall structural stability of the transmission towers throughout their entire service life cycle.
