CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry

CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry
CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry

Большие изображения :  CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Auten
Сертификация: ISO9001
Номер модели: JNC2532/JNC2532G
Оплата и доставка Условия:
Количество мин заказа: 1 КОМПЛЕКТ
Время доставки: 35 дней
Условия оплаты: L/C, T/T
Поставка способности: 100 комплектов/месяц
Подробное описание продукта
Размер угла ((мм): 140*140*10~250*250*32 Макс. длина сырья (м): 14
Сила маркировки ((kN): 1000 Номер группы символов: 1
No. of character: 18 Размер символа (мм): 14*10*19
Диапазон точного расстояния (мм): 50~220 (Бесступенчатый) Конус бурильного шпинделя: BT2
Максимальный диаметр бурения (мм): Φ40 Максимальная скорость вращения шпинделя ((r/мин): 6000
Устройство охлаждения сверла: MQL 360-2 ((сухое охлаждение)

CNC Angle Steel Drilling and Marking Machines: Models JNC2532 and JNC2532G

Product Composition:

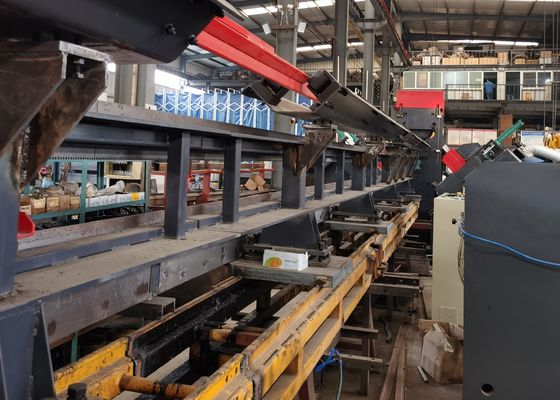

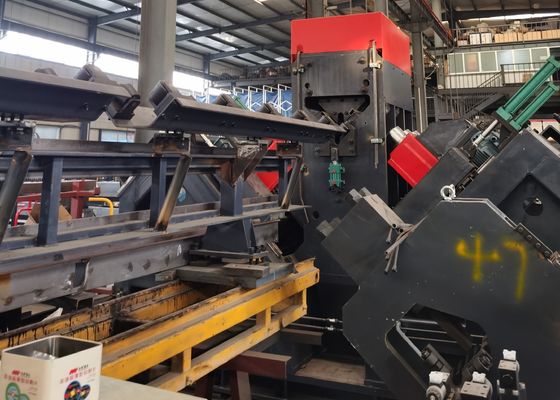

This machine is used for angle steel drilling and marking mainly in the field of angle steel tower industry, this machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, drilling unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.



CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry 0


Product Features:

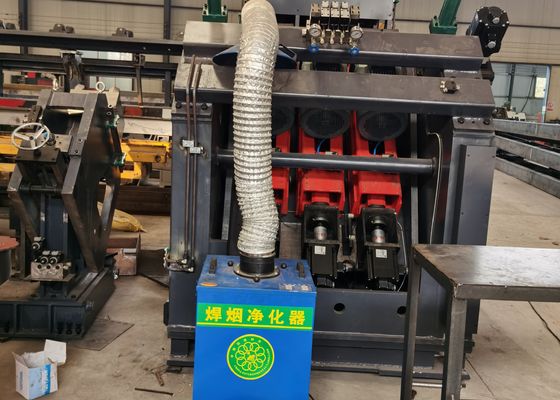

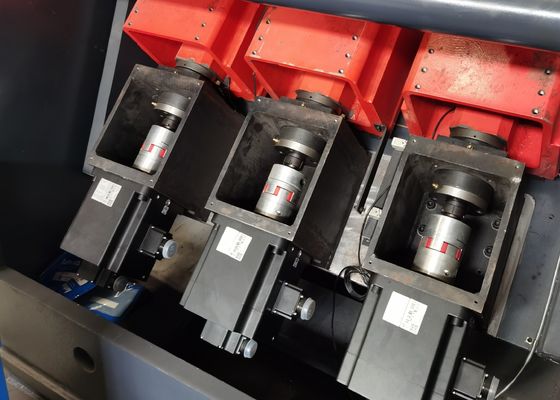

1. This processing line is composed of transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two sets of drilling units, one set of marking unit, unload conveyor and corresponding hydraulic station, cooling system. Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.

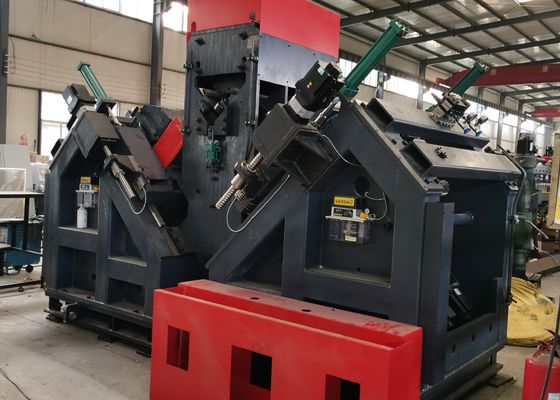

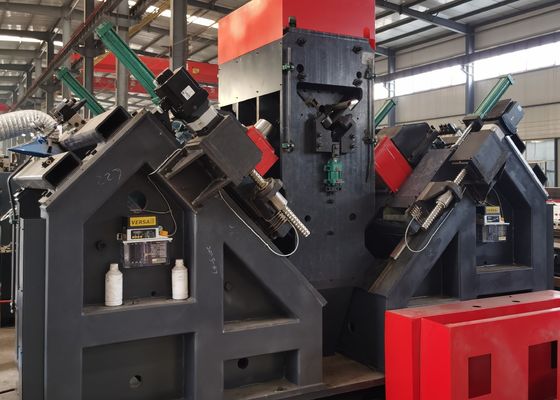

2. There is one set of drilling unit on each side. Every drilling unit can be installed with three drills of different dimensions. The drilling unit can realize the CNC movement holistically for change of drilling stadia, therefore to ensure the accuracy of holes.

3. Rotation speeds of all spindles are stepless adjustment realized by transducer, and feeding speeds are also stepless adjustment realized by speed regulating valves. Transform of the rapid feeding, work feeding, and rapid with drawing of spindles all are finished automatically.

4. One marking unit in the drilling line. Marking stadia can be preset conveniently. Marking, clamping of the workpiece and infeed of the drilling are driven by the hydraulic system. Main components are imported. Circulate cooling system is applied so as to prolong the life of drills.

5. All marking and drilling in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength of workers with well advantages than other manufacturers.

6. The control system consists of the host computer, servo motor, PLC, external monitoring switch, etc. Just input the dimension of the workpiece, the processing program will be generated automatically. Besides, the program can be saved, selected, displayed and communicated as per the workpiece No.

7. The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.

8. With self-diagnosis failures function.

CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry 1
Parameter information

Model JNC2532 JNC2532G
Angle size(mm) 140×140×10~250×250×32
Diameter of drilling(mm) 13.5~40
Marking force(kN) 1200
Max. length of blank(m) 14
Range of back mark (mm) 50-220 (stepless)
No. of drill an each side 3
No. of character box 4
No. of character in each character box 18
Character side(mm) 14×10×19
CNC axes 3 9
Feeding speed of angle(m/min) 40
Stroke of Spindle(mm) 180 140
Spindle rotation speed(r/min) 180-560,Transducer stepless adjustment 6000
Taper of drilling spindle / BT40
Programming mode Input by keyboard, USB interface
Overall dimensions (m) 32x8.9x2.5 34.5×8×3
Gross weight About 17 tons About 30 tons

CNC Angle Line Machine JNC2532 and JNC2532G for Holistic CNC Movement and Accurate Hole Drilling in Angle Steel Tower Industry 2
