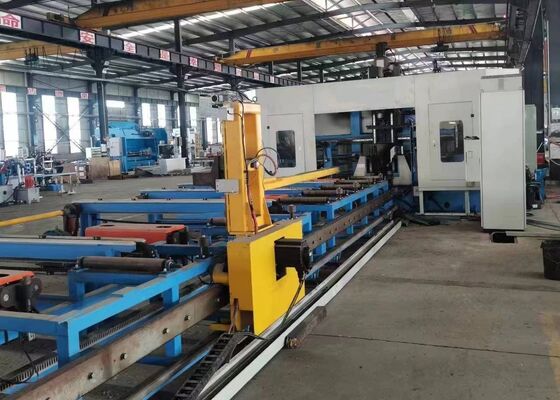

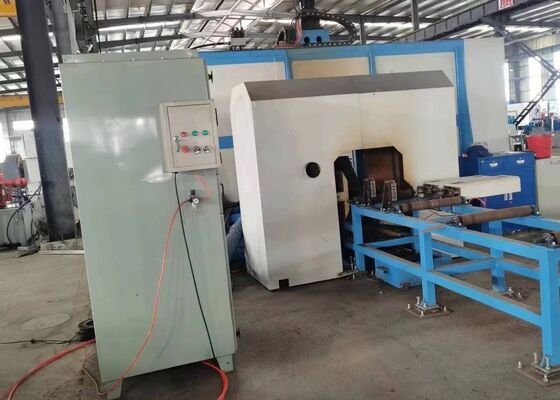

BT40 Spindle Hole Taper BHD Series CNC High Speed Drilling Machine For Beams
Product Introduction:
The CNC H-Beam Drilling Machine is specifically engineered for high-precision drilling, tapping, marking, and scribing operations on H-beams, channel steel, angle steel, and various structural steel profiles. It is extensively utilized in structural steel fabrication for buildings, parking structures, transmission towers, lattice frameworks, and other heavy steel construction applications.
1. Dedicated high-performance drilling equipment developed specifically for the structural steel fabrication industry.
2. Simultaneously performs three-sided drilling on H-beams and channel sections, delivering outstanding machining accuracy and productivity.
3. Equipped with seven CNC-controlled axes for fully automatic material feeding, positioning, and machining.
4. Compatible with AUTOCAD and DSTV file formats, enabling automatic recognition of workpiece drawings and direct generation of machining programs.
Product parameters:
| Model |
BHD1000/3 |
| H Beam width range (mm) |
100~1000 |
| H Beam height range (mm) |
100~500 |
| Channel steel width range (mm) |
100~1000 |
| Channel steel height range (mm) |
100~250 |
| Max. workpiece thickness (mm) |
80 |
| Max. workpiece length (m) |
12 or 15 (optional) |
| Drilling spindle qty. |
Total 3 spindles, one spindle on the upper unit, left side and right side respectively |
| Spindle hole taper |
BT40 |
| Max.drilling diameter (mm) |
40 |
| Spindle motor power (kW) |
11/15 |
| Spindle speed (r/min) |
100~3000 |
| Spindle feeding speed (m/min) |
0~10 |
| X-axis feeding speed (m/min) |
0~20 |
| Qty of tool magazine |
3 |
| Tool magazine type and capacity |
Row type, 3x4 (optional) |
| Marking unit (optional) |
Disc typing, 36 characters, character size Φ10mm |
| CNC system |
German, Japan, China INVT |
| Cooling method |
Spray cooling, internal cooling + external cooling |
| Machine Overall Size (m) |
About 33x5.5x3.5 |
| Total Power(kW) |
About 60 |
| The above parameters can be adjusted and changed according to customer's specific requirements. |
Product Features:

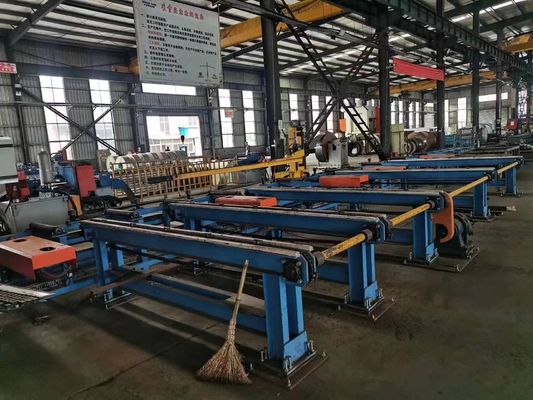

1. The material feeding system utilizes a CNC-controlled clamping carriage with servo-driven positioning, providing rapid feeding speed and exceptional positioning accuracy throughout the machining process.
2. Three high-speed BT40 precision spindles are configured to simultaneously machine the three faces of H-beams. The spindles support internal coolant carbide drilling with rotational speeds of up to 3,000 rpm, ensuring superior drilling efficiency, excellent hole quality, and efficient chip evacuation through an integrated chain-type chip conveyor.
3. The cooling system adopts an advanced mist lubrication technology supporting both internal and external cooling. Each spindle unit is equipped with an independent external spray nozzle and an internal coolant interface, allowing operators to select internal cooling, external cooling, or combined operation according to specific machining requirements.
4. An optional Automatic Tool Changer (ATC) system is available to perform automatic tool replacement without manual intervention, significantly reducing downtime and improving overall production efficiency.
5. An optional hydraulic CNC disc marking system can be integrated. Driven by a servo motor, the marking disc rapidly selects from up to 36 different characters, providing fast, accurate, and consistent identification marking.
6. Automatic scribing and tapping functions replace conventional manual layout procedures. The scribing system accurately marks welding reference lines on H-beam flanges and webs, while the tapping function performs threaded hole machining directly on structural members, improving both production efficiency and machining precision.
7. Throughout feeding and machining operations, workpiece lifting, side positioning, clamping, locking, and release are all hydraulically controlled, ensuring secure material handling, excellent operational stability, and dependable machining performance.
8. The control platform consists of an industrial computer integrated with a PLC control system, incorporating premium components from internationally recognized manufacturers. Multiple programming methods are supported, while machining data generated by AutoCAD, TEKLA Structures, DXF, and DSTV files can be directly imported to streamline programming and production management.
The demonstration workpieces include standard H-beam specimens with various flange widths and web thicknesses, together with channel steel samples of different dimensions, comprehensively illustrating the machine's machining performance. These samples clearly demonstrate precise hole positioning, high-quality thread tapping, and distinct marking results, allowing customers and inspection personnel to evaluate the equipment's machining accuracy, processing consistency, and operational reliability under practical production conditions.
The High-Speed CNC H-Beam Drilling, Marking, and Tapping Machine is extensively applied in structural steel fabrication plants, bridge engineering projects, and other heavy steel construction industries. Within steel fabrication workshops, it performs high-precision machining of H-beams used for structural frameworks and support systems, ensuring accurate assembly and dependable structural performance. In bridge construction, the equipment delivers precision drilling and tapping for H-beam components, enhancing structural integrity and long-term load-bearing capacity. Combining exceptional machining efficiency with reliable operational performance, the machine provides strong technical support for large-scale infrastructure projects while contributing to improved productivity, manufacturing quality, and on-time project completion.
